Garrett G35-900 Turbocharger T3 / V-Band

Description

The Garrett G35-900 Turbocharger T3 / V-Band is an advanced forced induction solution designed for high-performance applications, ideal for engines with a displacement range of 2.5 to 5.5 liters. This turbocharger is engineered to deliver exceptional power and efficiency, making it a fitting choice for racing, high-boost builds, and time attack scenarios.

• Forged and machined compressor wheel with up to 15% increased flow over GTX series
• High-flow compressor housing with optional speed sensor connection
• Turbine wheel constructed from Mar-M alloy, capable of withstanding temperatures up to 1050°C, with 74% improved efficiency
• Stainless steel turbine housing built for high thermal resistance, rated for 1050°C

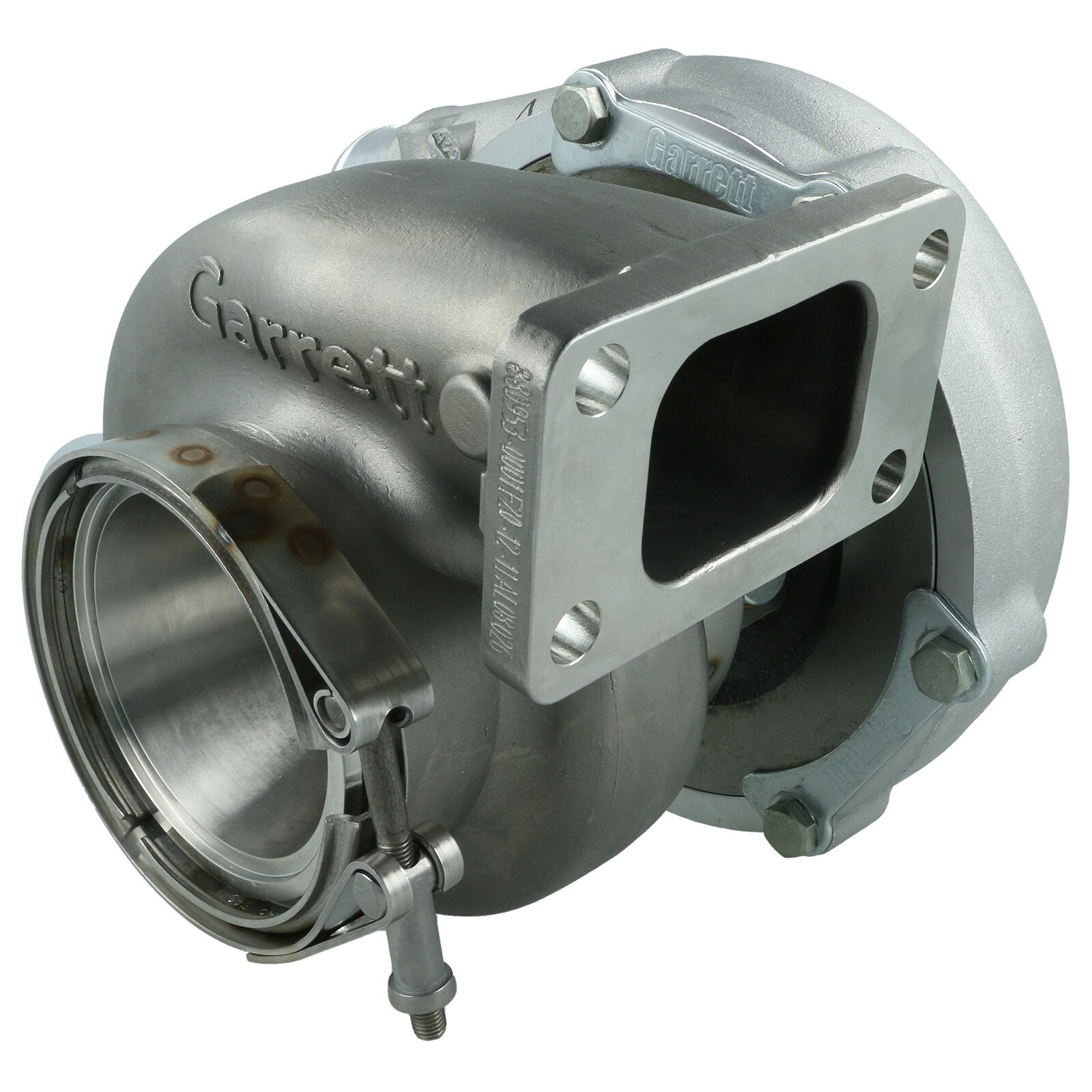

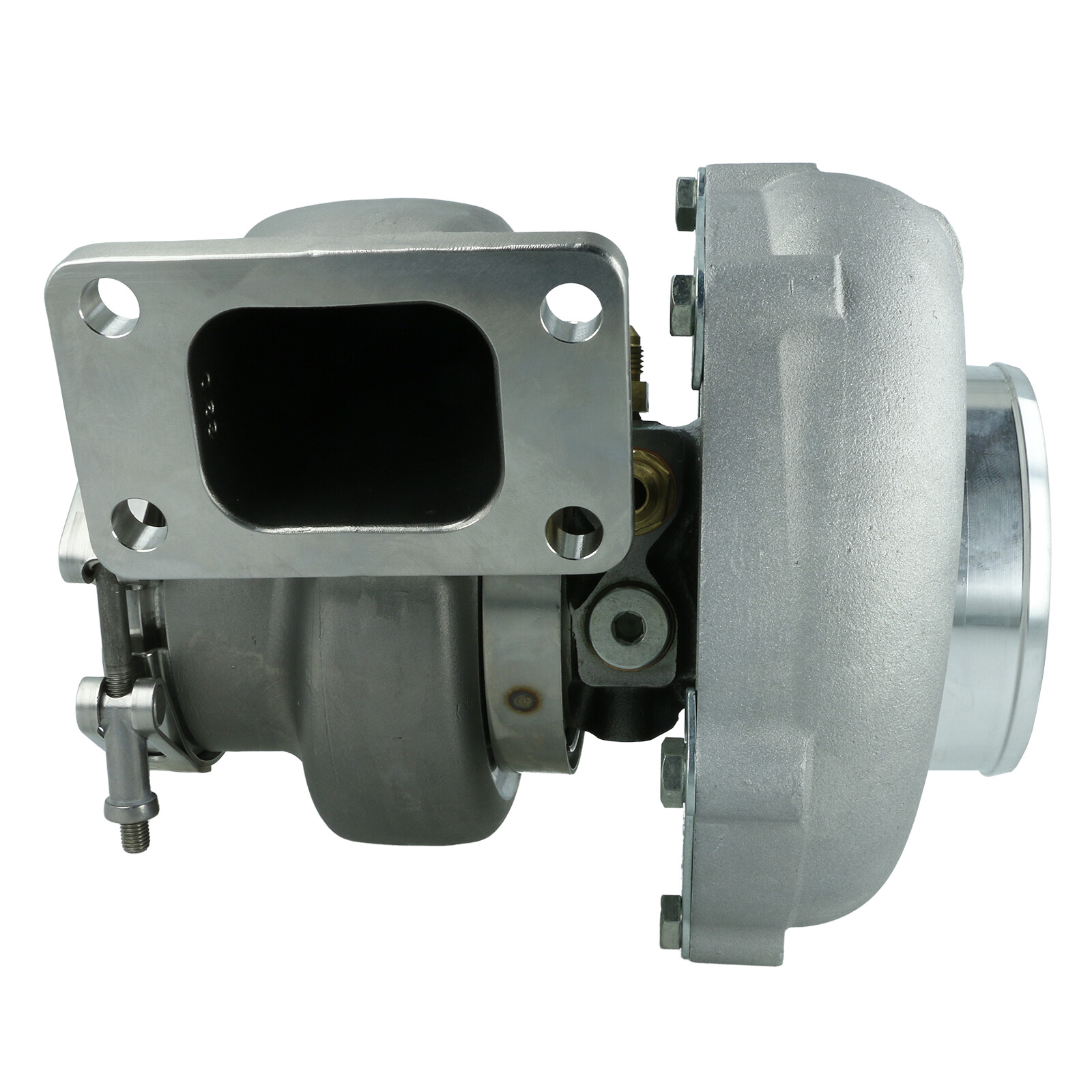

• Exhaust housing features T3 inlet and V-band outlet design
• CHRA with V-band allows for flexible orientation
• Double ceramic ball bearings for enhanced durability and reduced friction
• Four water connection ports for optimal cooling
• Double seal on piston rings to minimize oil leakage
• Available in right and left rotation configurations

This turbocharger supports power outputs up to 900 HP, making it suitable for competitive motorsport applications. The CFD-designed compressor wheels provide up to 30% more flow than previous generations, while the aero-optimized compressor housing enhances efficiency and operational range. Installation is simplified by the four-port water cooling system and customizable flange options.

Garrett G35-900 Turbochargers are shipped as a supercore and housing separately, allowing for tailored assembly to fit specific vehicle setups. This product is intended for professionals and experienced tuners looking to maximize performance through precision engineering.
