Garrett G40-900 Turbocharger T4 Divided/ V-Band

Description

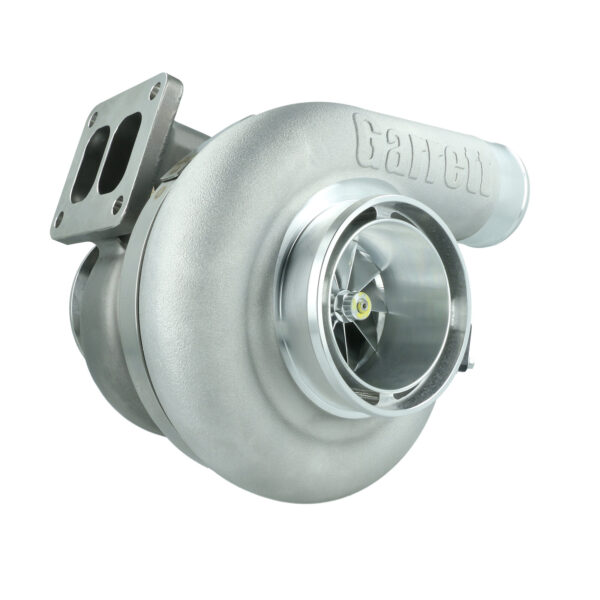

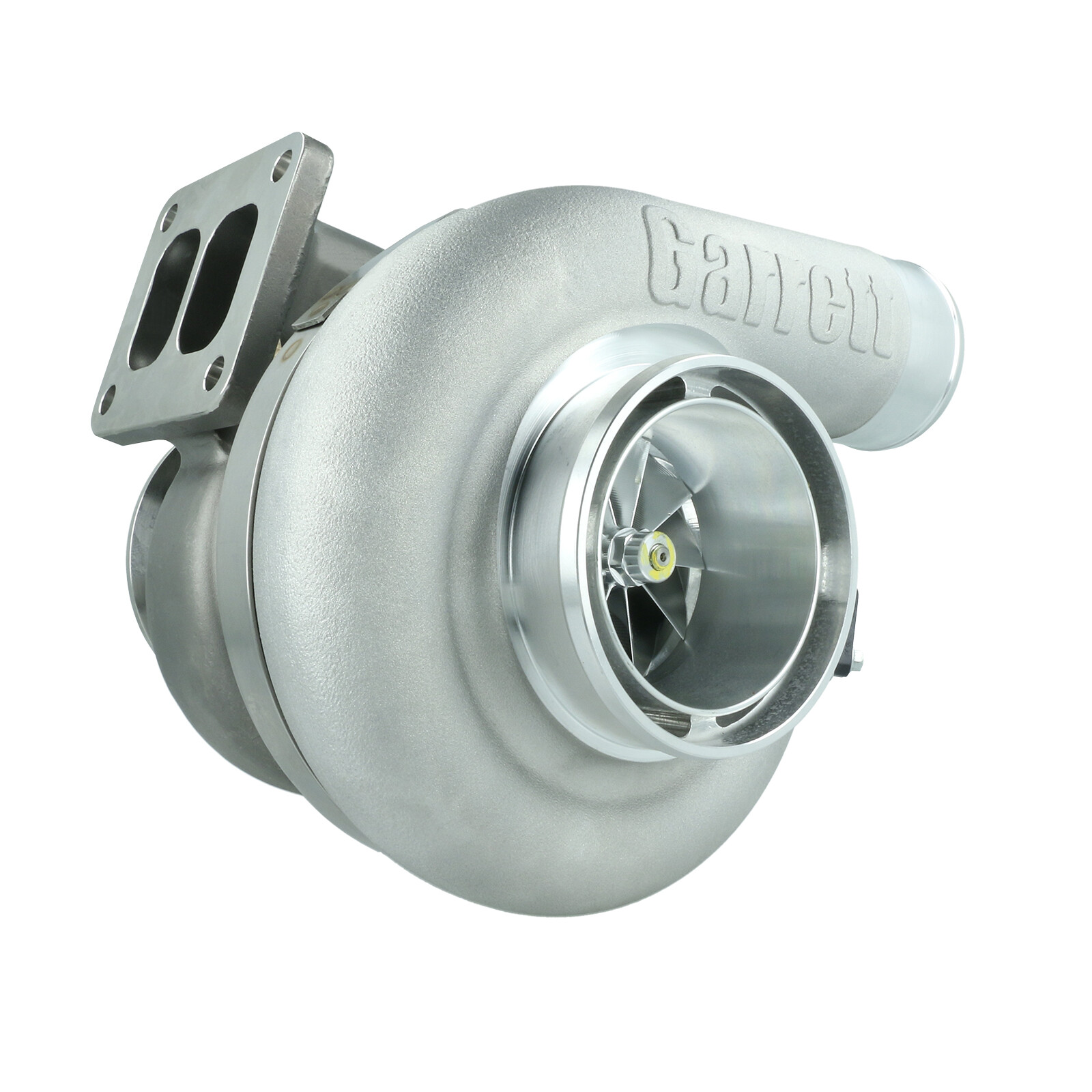

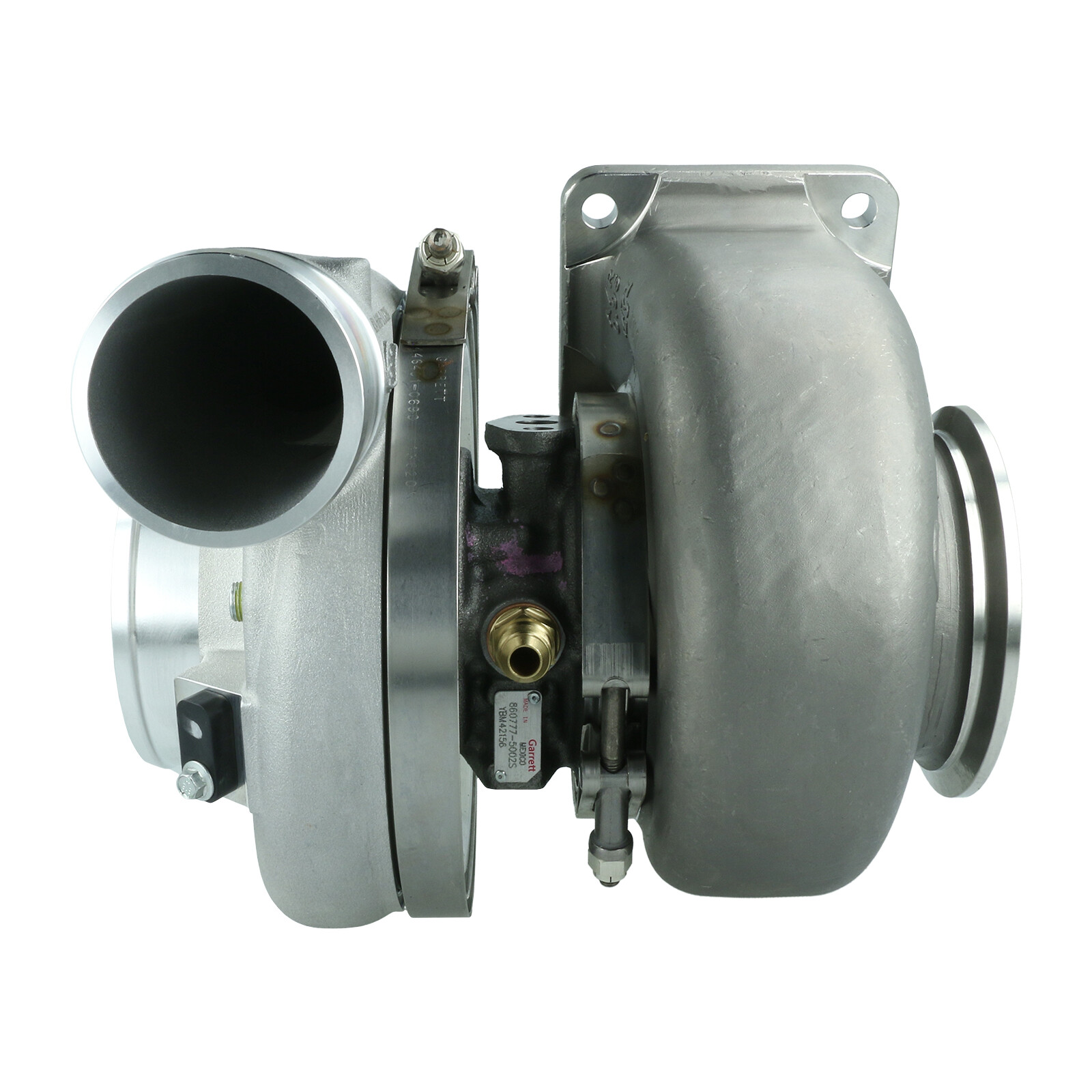

The Garrett G40-900 Turbocharger is a high-performance T4 divided/V-band turbocharger designed for serious motorsport applications and high-boost builds. This turbocharger fits engines ranging from 2.0 to 7.0 liters and is engineered to deliver exceptional power, with a capability of up to 900 horsepower.

• Forged and machined compressor wheel with up to 15% increased flow compared to previous GTX models
• High-flow compressor housing with optional speed sensor connection
• Turbine wheel crafted from Mar-M material for up to 1050°C resistance and 74% increased efficiency
• Stainless steel turbine housing durable up to 1050°C

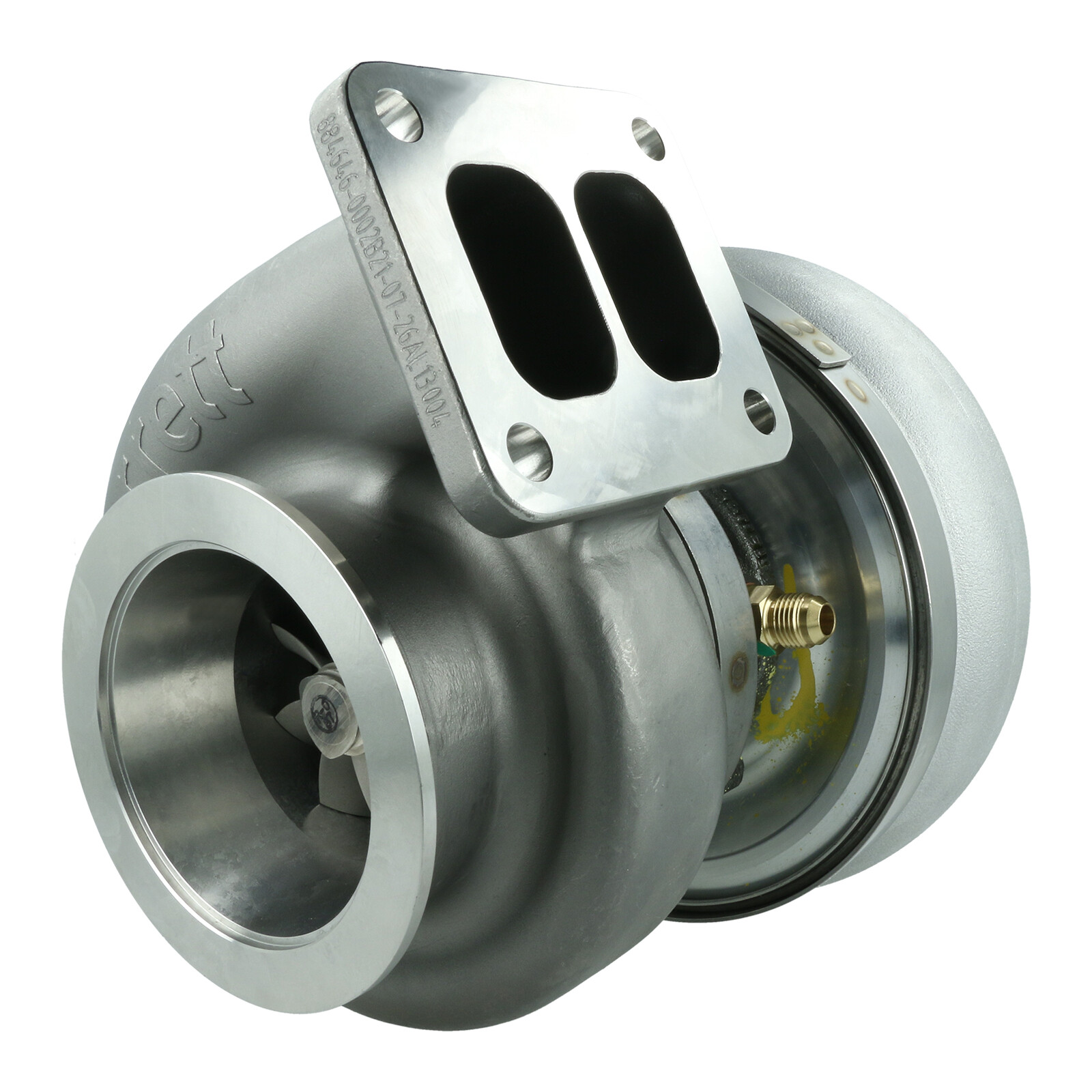

• T4 twinscroll inlet and V-band outlet for optimized exhaust flow
• CHRA with V-band for customizable orientation
• Dual ceramic ball bearings and four water connection ports for enhanced cooling
• Double seal piston rings for improved reliability

This turbocharger is ideal for applications like time attack and road course racing, where consistency and high performance are crucial. The advanced materials and design ensure resilience under extreme conditions. Note that the G40-900 is shipped as a supercore and housing separately, requiring assembly.

For tailored applications, Garrett offers options to adapt flange patterns and connections to your specific vehicle setup. Contact us for customization possibilities.
