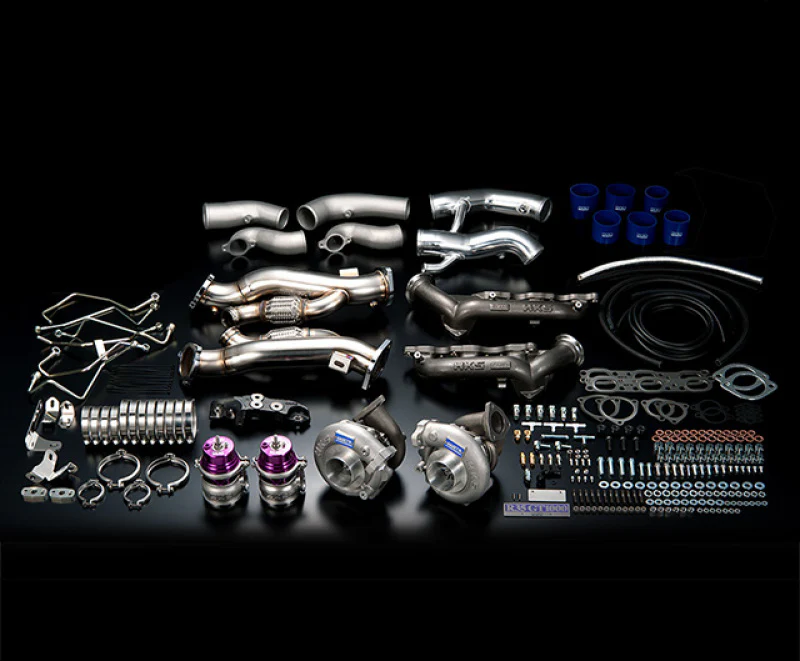

HKS GT1000 Full Turbine Kit R35 GTR

HKS GT1000 Full Turbine Kit R35 GTR

£12,720.00

In stock

SKU: 11003-AN013 Categories: , , , Tags: , , , , , ,

Description

GT1000 FULL TURBINE KIT

Code No. 11003-AN013



CI2kZ8yKwVSoXvzJQE1HzyqnbNXnTjOQyH5iLtGc





HKS is challenging for the high performance concept of HKS R35 GT series. And we have set the goal of 1000 horse power with GT1000! For the extream power and performance, the GT800 design of “symmetrical layout” has succeeded to the new GT1000.





【Features】

  • GT1000 has succeeded ideal design of “symmetrical layout” of GT800. And HKS has tuned-up and newly designed in all little detail for precision, strength and heat-persistence. The new GT1000 provides effective boost control and prevents from exhaust loss.
  • For effective intake and exhaust stream, HKS has newly redesigned original suction pipe and chamber pipe for the new GT1000.
  • Our proven technology “heat-resistence cast” was employed in exhaust manifold which provides high resistance in the heat and vibration.
  • GT II is employed for wastegate of GT1000 which is very small and light and still has secure boost control.





【Performance】

Power Torque Boost
GT1000 Racing SPEC 1012ps/7450rpm 120.7kg-m/3990rpm 2000kPa
GT800+ Racing SPEC 859ps/6820rpm 103.9kg-m/3950rpm 165-155kPa
GT800 Racing SPEC 804ps/6790rpm 98.7kg-m/3850rpm 165-155kPa







Boost pressure and output
100kPa 730ps
120kPa 840ps
160kPa 930ps
200kPa 1000ps

* The output data is test result of HKS chassis dynamometer. The results may vary for other device.



Testing vehicle specification (outline)

  • GT1000 FULL TURBINE KIT
  • GT1000SPEC INTERCOOLER KIT
  • 4.1L Capacity Up KIT
  • HIGH-FLOW SURGE TANK FULL KIT
  • Muffler for race (prototype)





【Components】

●Parts for GT1000
Exhaust Manifold Heat resistance cast about φ52 pipe
Turbine GT II 7867 Heat resistance cast (T/HSG)
Wastegate HKS GT II φ50
Front Pipe SUS304 φ70→φ75
Suction Pipe AL buff φ70
Other short parts

* We suggest to use HKS Racing Suction Reloaded





【Cautions after installation】

  • Removing and installation of the engine is required for installation.
  • Fuel pump, injector, F-CON, EVC, Engine parts are not included.
  • Factory setting for wastegate boost pressure is about 90 to 100kPa.
  • Need processing of stock water pipe.
  • Need processing of stock turbocharger heat insulator.
  • This product is for the race. HKS does not guarantee the damage for using it or installation.
  • This product take the catalyzer away which doesn’t meet the safety standard, therefore can’t drive on the public road.
  • Not subject to dealer warranty
  • GT800-1000 Upgrade Kit must be upgraded from GT800 full turbine kit.





MODEL Control
device
Power
per
turbine
Compressor wheel Compressor housing Turbine wheel Exhaust housing
Trim Inlet
(mm)
Outlet
(mm)
Inlet
(mm)
Outlet
(mm)
A/R Trim Inlet
(mm)
Outlet
(mm)
Inlet
flange
Outlet
flange
A/R
GT II 7867/
GT II 7867R
Wastegate 550 63 62.0 78.0 0.74 R35
only
0.74 77 67.5 59.3 R35
only
R35
only
0.66







Vehicle Model Engine Model Year Type Turbo Kit Turbine Size Boost Pressure Code No. Manual Remarks
GT-R R35 VR38DETT 07/12 – GT1000 FULL TURBINE KIT GT-FTK GTII 7867 & GTII 7867R 88.3kPa (0.9kgf/cm2) 11003-AN013 icon pdf Off-road use only.
