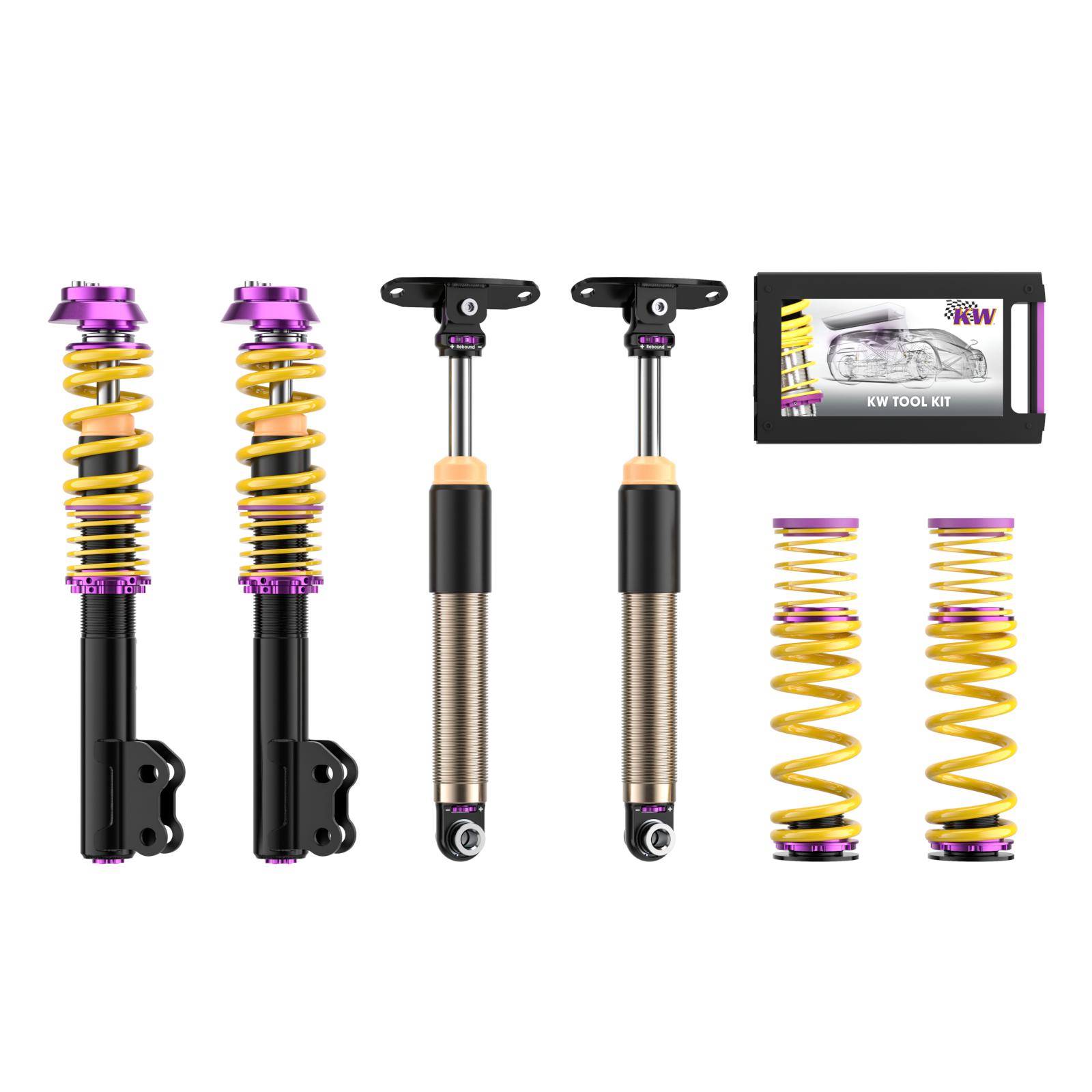

KW Coilover suspension V3 racing GR Yaris

Do you want to break later and drive faster?

The KW V3 Racing suspension is a vehicle-specific motorsport application and is available in different versions for a wide range of vehicles.
Numerous KW motorsport customers opt for a KW V3 Racing when participating in various circuit events such as the Rundstrecken-Challenge Nürburgring e.V. or track days. The entire design of the KW V3 Racing is a vehicle-specific development for the Nürburgring Nordschleife. All parameters such as axle geometry, ground clearance, damping dimension, spring rates, spring travel, and wheel loads are tailor-made for the Green Hell. Depending on the vehicle, the KW V3 Racing is made with shock bodies of high-strength aluminum, galvanized steel or MacPherson struts directly in Fichtenberg after order placement.
The damper characteristics curves can be set separately with twelve clicks in the low-speed compression stage and with 16 clicks in the low-speed rebound stage. Enabling a comprehensive setup range, each click on the setup enables your preferred optimized setting.

– Unibal top mounts made of aluminum (adjustable camber, depending on axle geometry and car).
– High-tensile linear motorsport springs.
– Adjustable compression rate in low-speed.
– Adjustable rebound rate in low-speed.
– Shock body made from high-tensile aluminum or galvanized steel.

Vehicle type: TOYOTA YARIS P21 PA1 PH1 02 2020- P21 PA1 PH1 1.6 GR 4WD GXPA16 Petrol 192KW 1618ccm
