Description

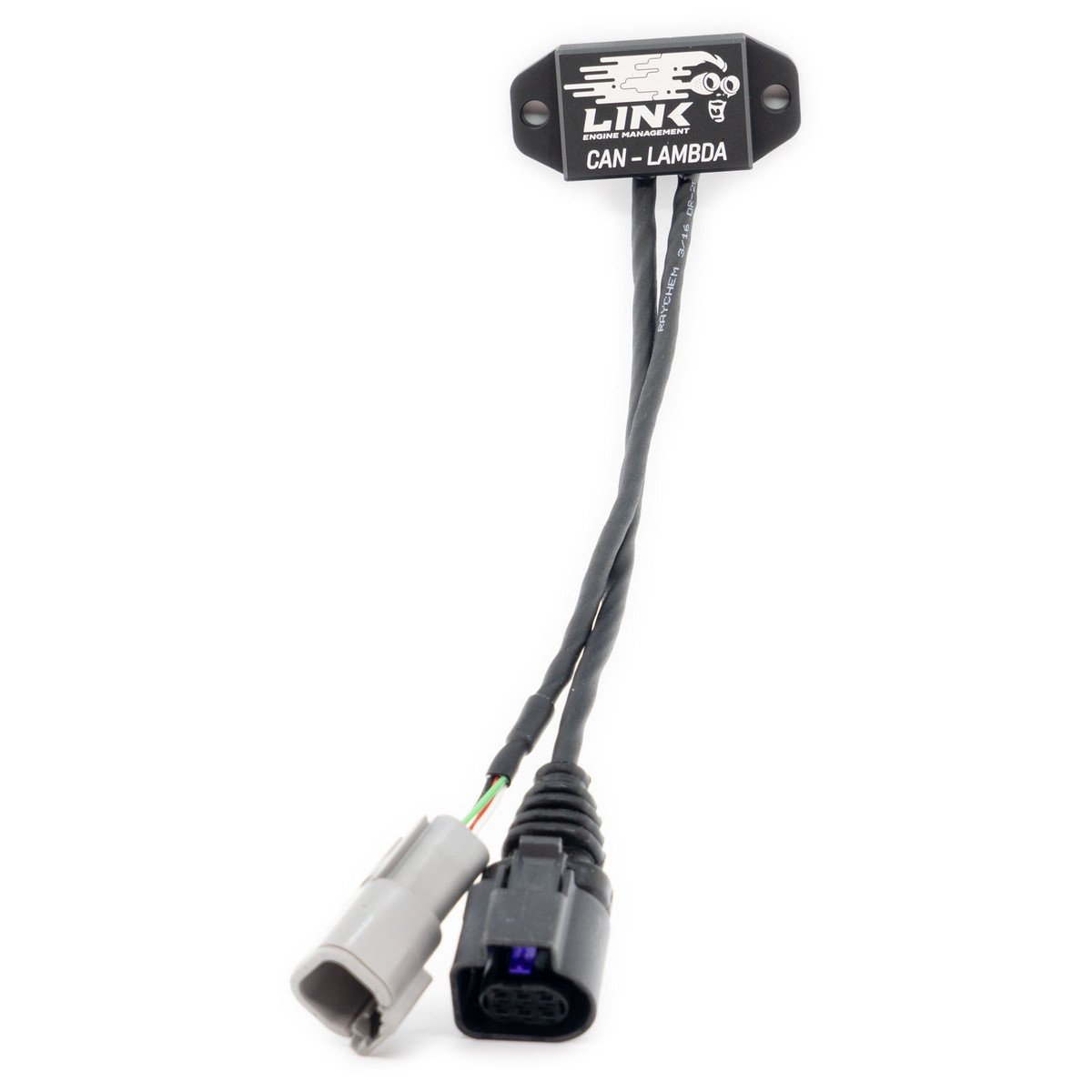

Link’s CAN Lambda is an easy to use CAN module that provides digital wideband sensor control via CAN bus and is compatible with leading aftermarket ECUs.
If using the CAN Lambda with a G4+/G4X PlugIn ECU use a Link CANPCB cable to access the CAN port on the PlugIn PCB and a Link CANF field insertable CAN plug.
Please note proper CAN protocol must be followed. See manual below for guidance.
Specifications
1 x 4 pin male DTM connector (power/CAN)

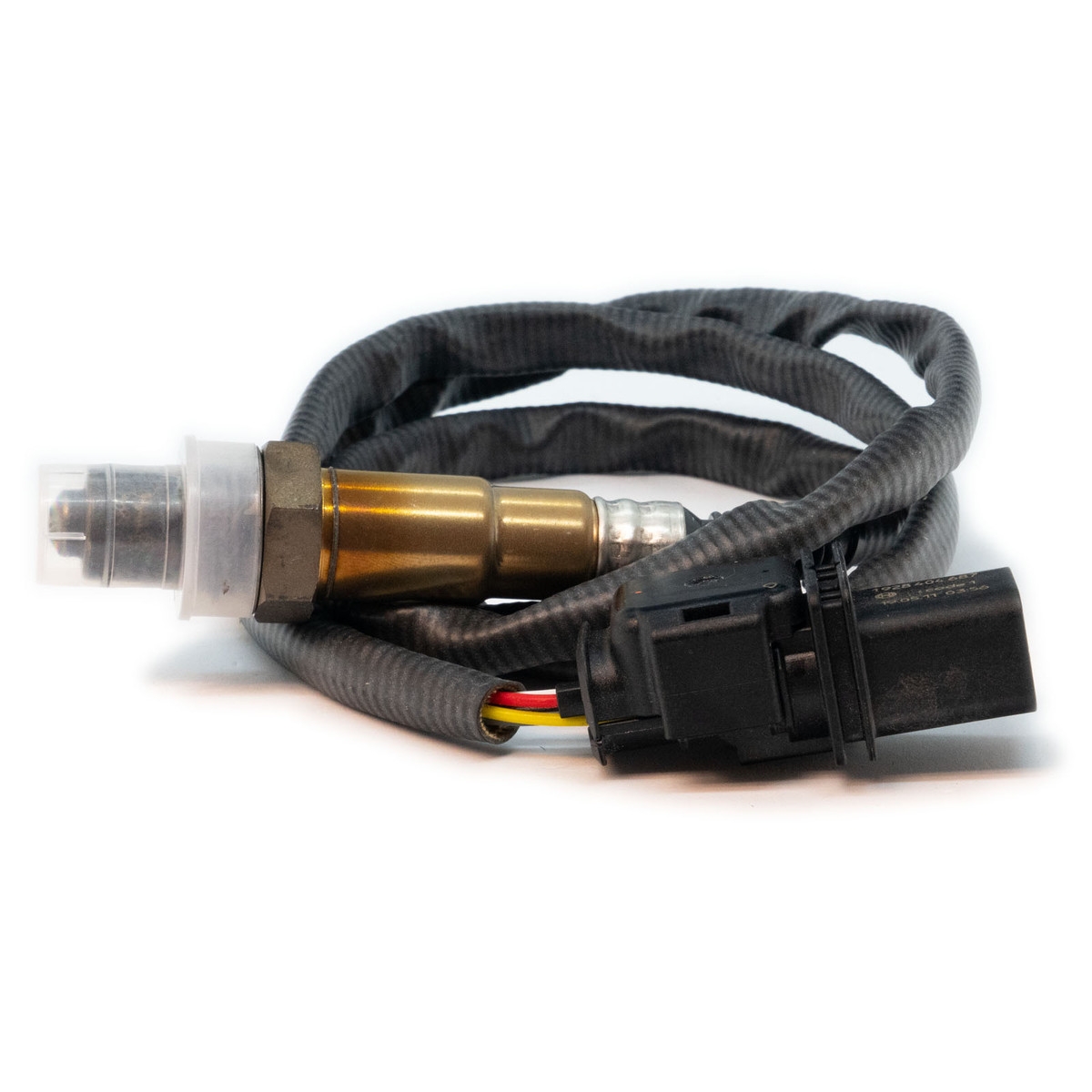

1 x 6 pin mating connector for LSU 4.9 Lambda sensor
DimensionsEnclosure 60 x 26 x 15mmLead length 170mmWeight 70g
Input VoltageController 7.5 – 20 VSensor 10.8 – 16.5 V
Input CurrentController 100 mASensor Heater 8 A
Operating Temp -20 – 100 deg.CSensor Bosch LSU4.9Sensing Range 0.67 – 10 lambda
CAN Frequency 1Mb/s,500kb/s,250kb/s,125kb/s
