Description

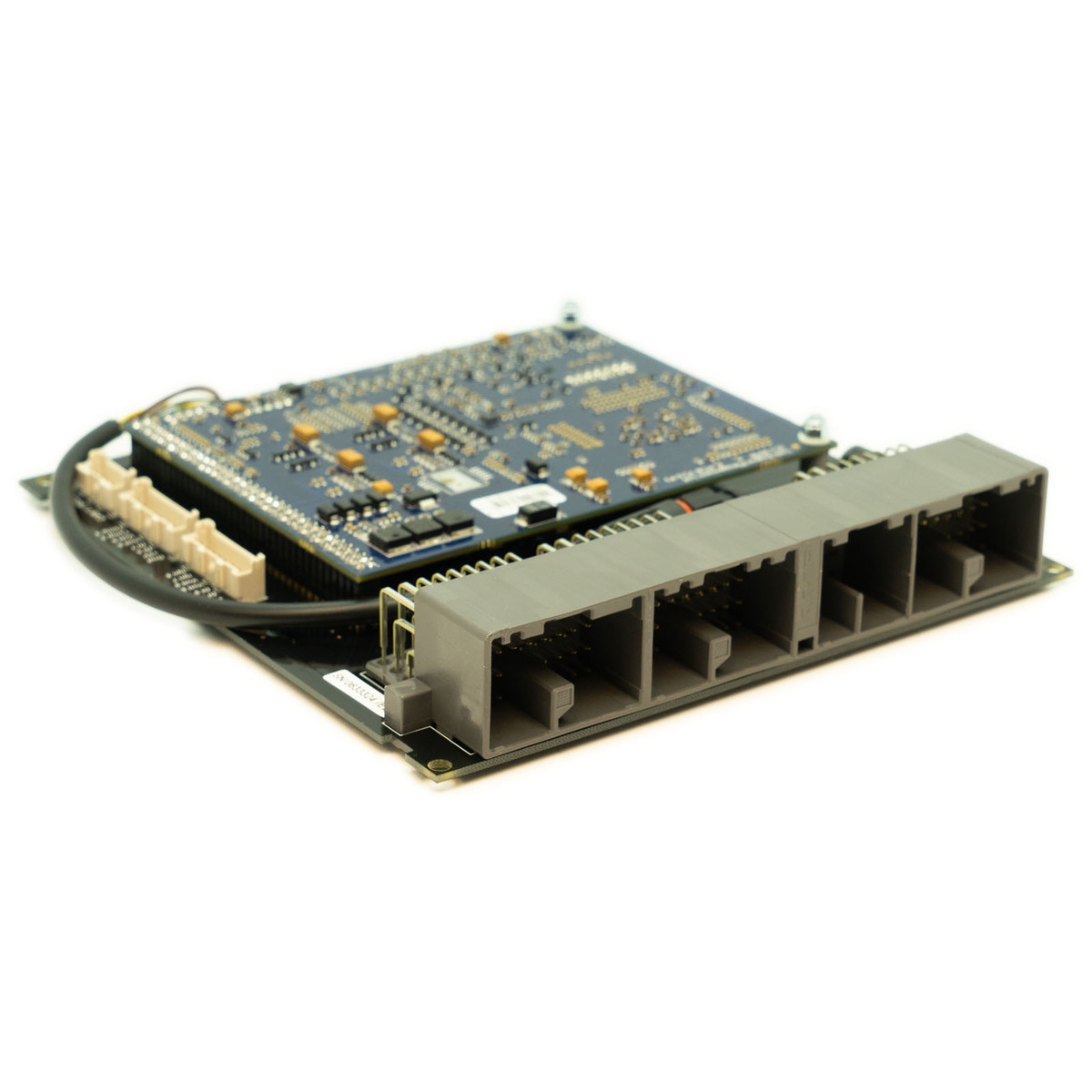

Easy to install. Affordable. Reliable. G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car. This ECU fits inside the factory OEM enclosure. Installation is a breeze, with no alteration of the factory wiring loom required for the models listed below.
Designed for the WRX V5-6 EJ20.

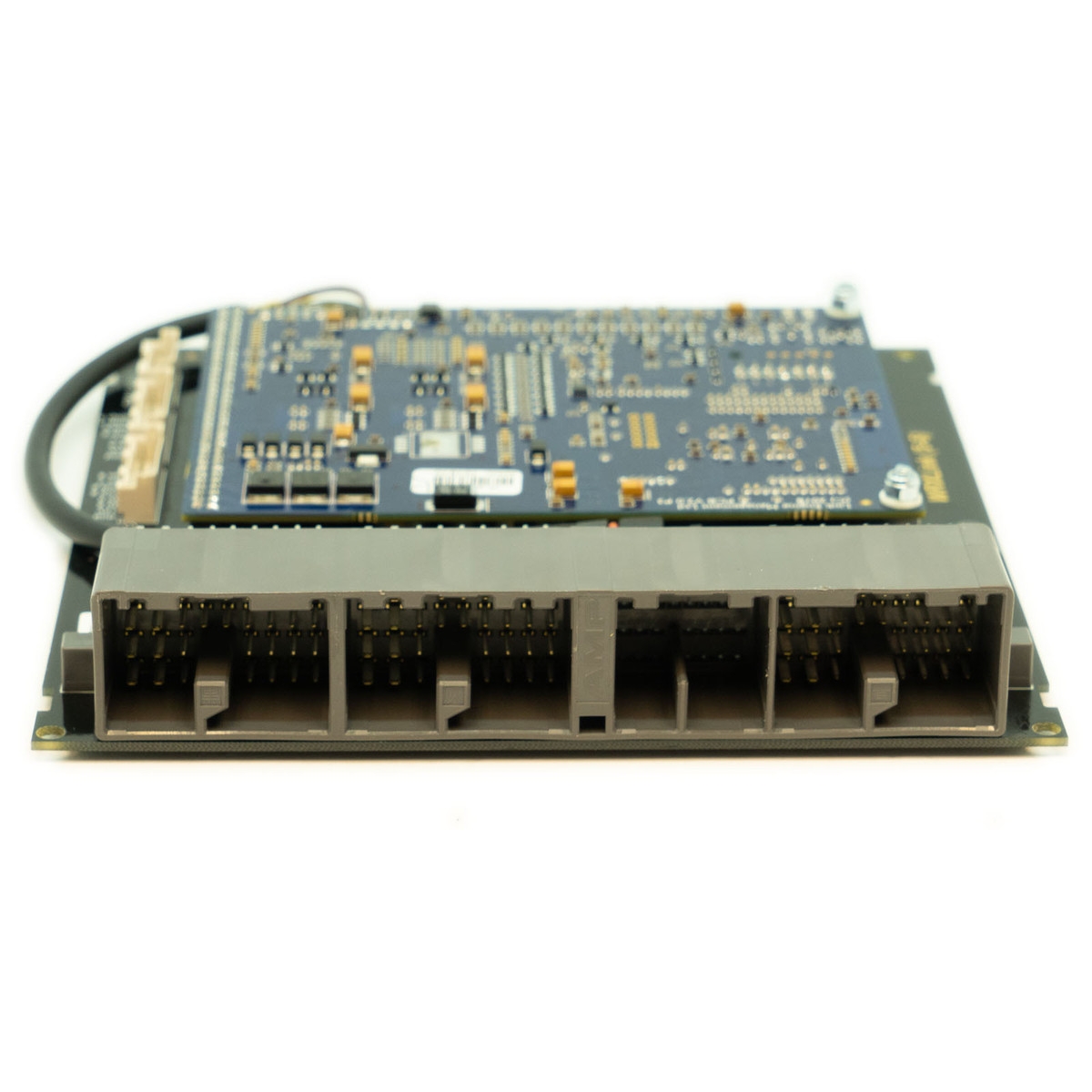

Please check your pinout matches the header in the listed photo before purchasing.
This ECU works for manual transmissions only.
Air temp sensor highly recommended.
Most factory features are supported.
Check the features tab for I/O expansion options
Suitable Applications: GC8F GC8G WRX and STI from 09/1998 to 08/00 MY99 & MY00
G4X PlugIn Key Features (where applicable):Up to 6D fuel and ignition mappingPrecision closed loop cam control (four cam, independent control)Sequential fuel deliveryDigital triggering, all OEM patternsOEM idle hardware supported5D boost control with three switchable tablesMotorsport features – antilag, launch, flat shiftContinuous barometric correction (on board)CAN portQuickTune – automated fuel tuningIndividual cylinder correctionUSB tuning cable includedStats recording into on-board memoryGear compensations for spark, boost and fuelReal time selectable dual fuel, ignition and boost mapsSync and crank sensors can be a combination of Hall effect, variable reluctance or opticalBoost control referenced to gear, speed or throttle position512 mega bytes data logging memoryStaged injectionKnock with “windowing”
The following expansion connector inputs/outputs are provided: XS connector 1 Gnd Sensor Ground Only +5V Out Low Current +5V Supply DI 8 Digital Input DI 9 Digital Input An Volt 8 Analog 0-5V input An Volt 9 Analog 0-5V input Ign 7 Ignition 7 Auxiliary Output Ign 8 Ignition 8 Auxiliary Output
Expansion connector 2 Gnd Sensor Ground Only +5V Out Low Current +5V Supply DI 5 Digital Input DI 7 Digital Input An Volt 5 Analog 0-5V input An Volt 6 Analog 0-5V input An Temp 2 Temperature sensor input An Temp 3 Temperature sensor input
Download Manual Click here
