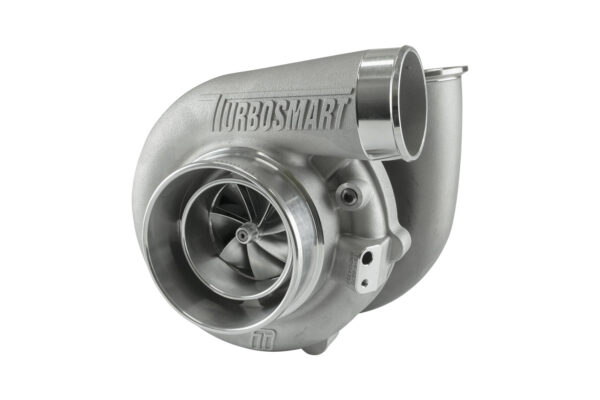

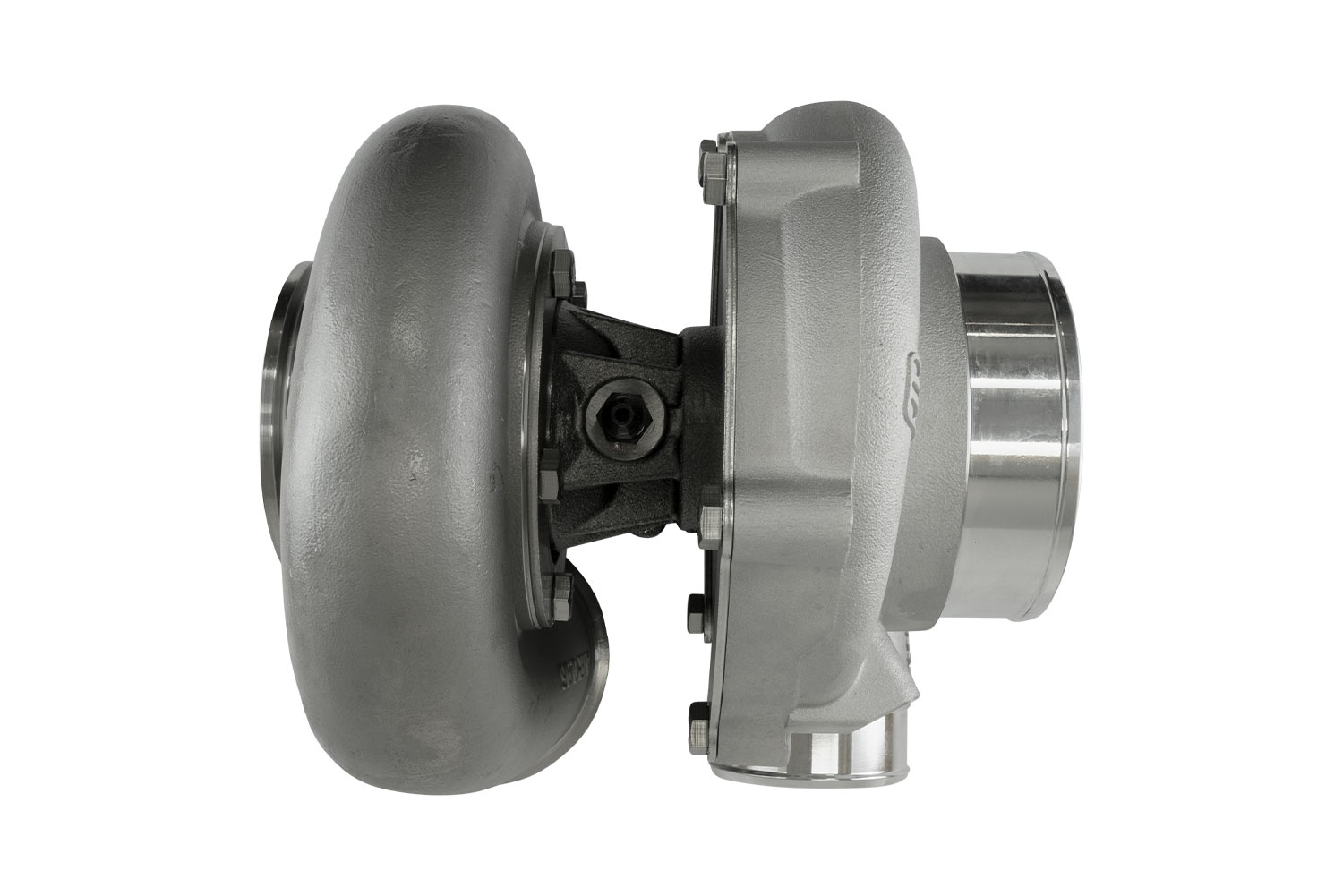

Turbosmart TS-1 Turbocharger 6870 (Kompact) V-Band 1.07AR Externally Wastegated

Description

The Turbosmart TS-1 Turbocharger 6870 (Kompact) V-Band 1.07 AR Externally Wastegated is engineered for high-performance applications, catering to motorsport enthusiasts and tuners demanding reliability and efficiency. This turbocharger is specifically designed to optimize power delivery in high-boost builds, ensuring exceptional transient response and flow characteristics.

• Unparalleled transient response with a lightweight design
• Aggressive 7+7 splitter wheel aerodynamics for improved airflow
• Constructed from lightweight 310 stainless steel investment cast turbine housings
• T14 Inconel turbine wheel capable of handling extreme exhaust gas temperatures (EGTs)
• Proprietary dual ceramic bearing system for enhanced durability
• Integrated iron backplate in the center housing for structural integrity
• Compressor inlet diameter: 4″ (101.6 mm), inducer diameter: 68 mm
• Turbine inlet: V-Band (2.25″), exducer: 70 mm, AR: 1.07
• Suitable for horsepower ratings between 850-990 HP
• Weighs 6.43 kg (14.17 lbs) for reduced overall weight

This Turbosmart TS-1 Turbocharger is ideal for applications such as road course racing, time attack, and other motorsport disciplines where responsiveness and power are critical. The included installation kit with weld flanges, V-band clamps, gaskets, and oil fittings simplifies the setup process. Built with advanced materials and precision engineering, the TS-1 series meets the rigorous demands of high-performance engines, ensuring optimal performance and reliability.
