Description
Code No. 80260-AT003
~ For Obsession with High Quality ~
Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design.
for 86(ZN6) & BRZ(ZC6) 16/8～

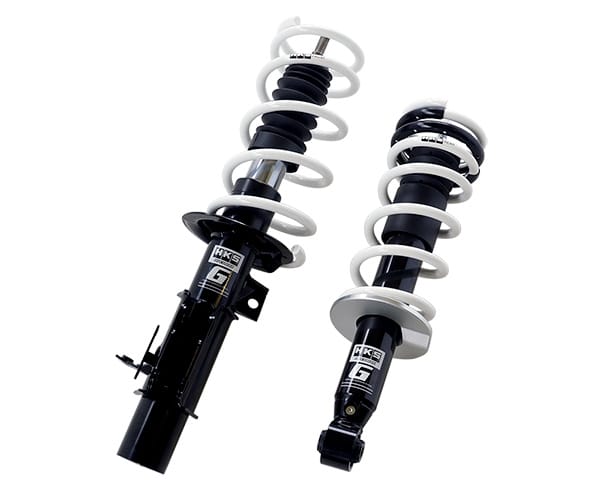

＜Product Basic Structure＞
●Single Tube Damper Assembly
●Special Low-down Style Spring
※The stock upper mounts are used.
■Features
- Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height.
- The front stock design inverted mono tube damper delivers high rigidity and reliable handling performance.
- The long stroke that was difficult in a conventional shock absorber has been realized. The stable driving is possible while preventing the wheels of the vehicle from levitating.
- Setting was performed to ensure a soft ride quality as well as fun to drive.
■Kit Parts
| Vehicle | Model | Engine | Model Year | Series | Full Kit Spring Rate F/R | Free Height | Damping Force Piston Speed 0.1m/sec Damping Force N | Vehicle Height (Highest – Lowest) | Code No. | Manual | Remarks | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F: Rebound/Compression | R: Rebound/Compression | ||||||||||||
| 86 | ZN6 | FA20 | 12/04 -16/07 | G | F=27(2.8)/R=44(4.5) | Special/Special | 245/98 | 333/98 | -9 | -12 | 80260-AT003 | ||
