Description

Code No. 42018-AT018



Power Editor is the boost controller that enables the boost pressure increase of the vehicles equipped with electric actuators.















■Outline
  • Easy plug and play installation to increase the boost pressure.
  • Boost pressure increase data is preset to Power Editor.
  • A bypass connector is included. It allows to bypass the unit even after connecting this kit.
  • Easy Writer for Power Editor can edit the preset data.
    Note: Easy Writer is NOT included in the product. Use provided USB cable to connect to computer.





■Main Functions
  • Boost pressure increase for turbo vehicle: Increasing the boost pressure of a stock vehicle.
  • Status indicating LED: Checking the unit status by LED.
  • Edit the boost increase data: Editing the preset data to the user’s original data to increase the boost pressure.
    Note: PC with Windows 10, 8.1, 8, or 7 is required.





■Features
  • Install this Power Editor between “pressure sensor” and “pressure sensor harness” can increase the boost pressure.
  • Easy Writer for Power Editor is available to edit the preset data. To edit by Easy Writer, connect Power Editor and PC using the provided USB harness.
  • Using a provided bypass connector instead of the Power Editor to reset the initial data. This can be used to easily check the difference.

Note

  • This product is applicable to a stock vehicles and vehicles equipped with HKS products.
  • This product is for a stock ECU data and not available to use with a customized data prepared by a ReFlash tool.

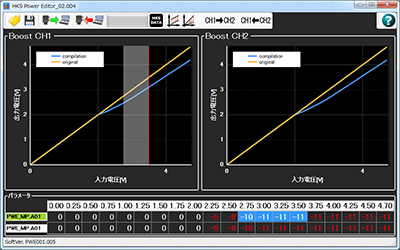

Easy Writer for Power Editor





■Preset Data

●TOYOTA GR Yaris [GXPA16] JDM SPEC





■Performance
Stock Power Editor
Power Increase 16.0kW(21.7PS) / 4800rpm
Torque Increase 42.9Nm(4.4kgf・m) / 3400rpm
Power 173.3kW(235.6PS) / 5600rpm 182.7kW(248.4PS) / 5300rpm
Torque 355.4Nm(36.2kgf・m) / 4200rpm 375.8Nm(38.3kgf・m) / 4100rpm
Boost 148.1kPa (1.51kgf/cm2) 167.7kPa (1.71kgf/cm2)

*Measured by Dynapack Chassis Dynamometers TCF of 1.00.









■Recommended Power Editor installation location and Pressure sensor location

Compatible vehicles

MakeModelEngine
ToyotaYaris GRXP210
