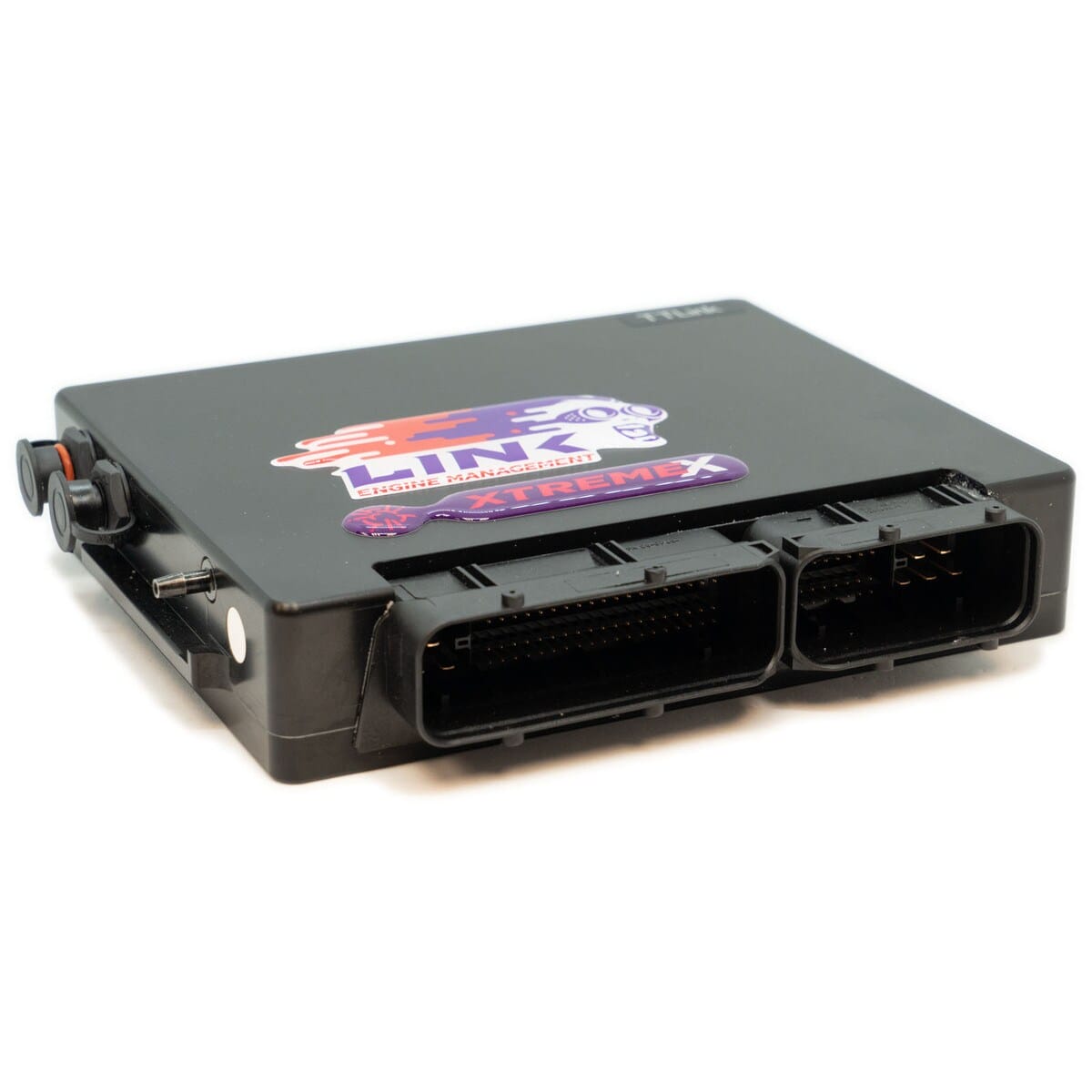

Link TTLink – TTX
G4X PlugIn Key Features (where applicable):
- Up to 6D fuel and ignition mapping
- Precision closed loop cam control (four cam, independent control)
- Sequential fuel delivery
- Digital triggering, all OEM patterns
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features – antilag, launch, flat shift
- Continuous barometric correction (on board)
- CAN port
- QuickTune – automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Stats recording into on-board memory
- Gear compensations for spark, boost and fuel
- Real time selectable dual fuel, ignition and boost maps
- Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
- Boost control referenced to gear, speed or throttle position
- 512 mega bytes data logging memory
- Staged injection
- Knock with “windowing”
I/O Expansion Options
There is no separate expansion connector on the TT Link. Expansion pins are accessible through the main header, listed below.
- Pin 110 – An Temp 3
- Pin 111 – An Volt 10
- Pin 112 – DI9
- Pin 113 – Ign 6
