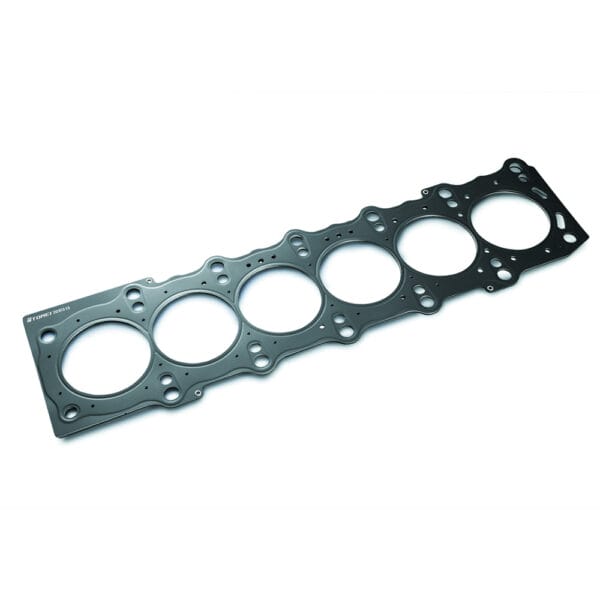

Tomei Head Gaskets 2JZ

Tomei Head Gaskets 2JZ

£204.00

HEAD GASKET for 1JZ-GTE
VVTi & Non VVTi Compatible!
BORE
THICKNESS
PART NO.
MSRP (USD)
MATERIAL
Φ87.5
1.5mm
TA4070-TY04A
$180.00
Metal
1.8mm
TA4070-TY04B
2.0mm
TA4070-TY04C
COMPRESSION RATIO CALCULATION TOOLS
HEAD GASKET for 2JZ-G(T)E
VVTi & Non VVTi Compatible!
Compatible with NA
BORE
THICKNESS
PART NO.
MSRP (USD)
MATERIAL
Φ87.5
1.2mm
TA4070-TY03D
$180.00
Metal
1.5mm
TA4070-TY03A
1.8mm
TA4070-TY03B
2.0mm
TA4070-TY03C
COMPRESSION RATIO CALCULATION TOOLS

Description

TITLE squere gasket
gasket overview image
kara10
■ULTRA DURABLE, HIGH PERFORMANCE HEAD GASKETS
■HIGHLY OPTIMIZED, ENGINE SPECIFIC CONSTRUCTION
■MADE USING PREMIUM GRADE MATERIALS AND COATINGS
■PRECISION WATER/OIL ROUTE SEALS
■MULTIPLE THICKNESSES FOR CR ADJUSTMENT

● COMPARISON WITH OEM (KA24DE)
kara10
comparisson ka24 oem
OEM GASKET
Less resistant to high temperatures and
comparatively inferior sealing properties.
Will easily ‘blow’ with tuning or under load.
kara10
comparisson ka24 tomei
TOMEI GASKET
Highly resistant to heat and extremely durable.Superior sealing that can withstand high power applications.

Highly durable combustion chamber seals: Withstands high power/boost/temperature applications.

Precision water & oil route seals: Ensures a steady circulation of engine fluids.
kara10
2J sealing test head
SEALING TEST (2JZ-G(T)E, HEAD SIDE)
2J sealing test block
SEALING TEST (2JZ-G(T)E, BLOCK SIDE)
kara10
2J sealing test head s
HEAD SIDE
2J sealing test block s
BLOCK SIDE
Thicker seals around the bore keeps pressurized gasses within the combustion chamber.
Thicker bore seals usually results in weaker seals around the oil and water routes. However,
TOMEI USA gaskets have been specially designed to distributed pressure evenly in order
to maintain a high quality seal across the entire surface.

Engine specific gasket construction ensures optimal performance & least stress on block/head.
kara10
sr kouzou
RAISED BEADS
Stopper type
rb kouzou
FLAT BEADS
Grommet type
4b11 kouzou
OPPOSING BEADS
Double-stopper type
kara10
ej kouzou
OPPOSING BEADS
Stopper type
f2022 kouzou
MULTI-BEAD
Stopper & shim type
kara10
bt view cross d
BEAD TYPES
kara10
raised
RAISED
recessed
RECESSED
flat
FLAT
SEAL TYPES
kara10
stopper top
STOPPER (TOP SIDE)
grommet top
GROMMET (TOP SIDE)
stopper shim
STOPPER & SHIM
kara10
stopper under
STOPPER (UNDER SIDE)
grommet under
GROMMET (UNDER SIDE)

● MULTI-LAYER CONSTRUCTION FOR MULTIPLE THICKNESSES
kara10

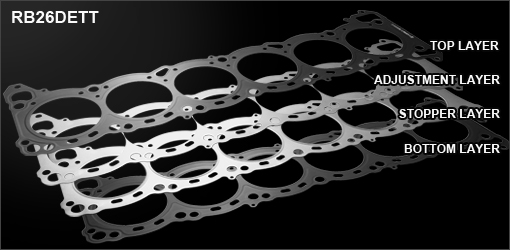

multi layer image rb26
kara10

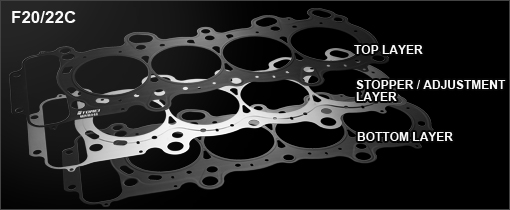

multi layer image f2022
kara10
3sheets
6sheets
Adjustment layers of various thicknesses are combined to offer a diverse range of gaskets in a
multitude of thicknesses.

A diverse range of specifications for precise compression ratio adjustments.
kara10
thin thick gasket
COMPRESSION RATIO CALCULATION TOOLS
kara10
bt gk crc l bt gk enginedata l

● MATERIAL & COATING
kara10
STAINLESS STEEL
Stainless steel is used across all our high performance gaskets. Robust and resistant to high temperatures,stainless steel facilitates efficient transfer of heat from the combustion chamber to the cylinder block. In addition, it’s flexible nature further strengthens the seal made by the spring-like beads which helps prevent issues such as blown gaskets and melted cylinder blocks.
kara10
UNIQUE RUBBER COATING
Both the top and bottom layers of the gaskets are coated in a specially developed unique rubber coating that reinforces the seal and contact with the head/block surfaces.

Additional information

Thickness

1.5mm-2JZ, 1.8mm-2JZ
